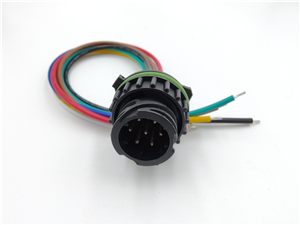

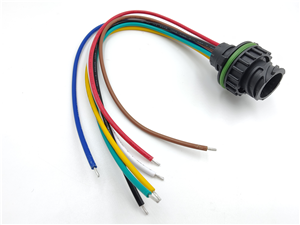

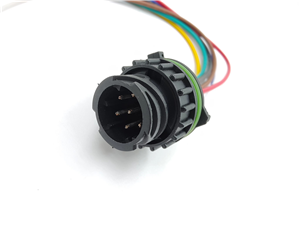

7Pin cable assembly components of automotive lighting connector
Item no. : FSCT-DJXS-14
Dimension(Inch) : 7Pin 150mm
Function: Waterproof Terminal connector
Working Voltage: 12-48V DC
Theoretical power: 100W
Certificated: UL, CSA, CE, ROHS, VDE
Sammoon designs and manufactures custom automotive wiring harnesses for vehicles of all sizes and types.
Sammoon Auto Wire products, including wiring kits, electrical switches, fuses, relays, wiring tools, battery components, and more. Shop now!
We'll work from your drawings or work with you to design automotive wiring harnesses.
Sammoon waterproof lighting wire connectors electrical push pin wire connectors types are durable, insulated, safe, reusable.
Widely used in a variety of electrical products, lighting, junction box, control board early warning system, lighting equipment, and other fields.
The Electrical wire connectors has passed UL, CSA, CE, ROHS, VDE and other safety technology certification
Functionality and Performance | Parameter |
Category of use | Engineer machinery rear combination work lights |
Material of wire harness | Rubber wire |
Harness specification | 7-18AWG (18# Harness Wire) |
Harness wire color | Brown /Yollow /White /Red /Black /Green |
Connector name / Color | Male side-1718230-1 / Black |
Voltage drop across between terminal and wire connector | Test current 10A, Voltage drop less than 5mV |
The tension between the terminal | ≥80N |
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered
- Shipping: by sea or by air
- Delivery time: 15-25 days(In stock products)
- Order now: sammoon07@sammoon.tech
