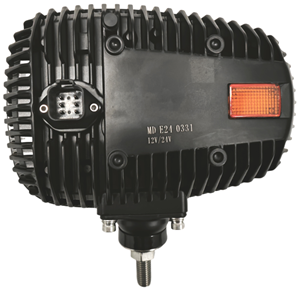

Front Combination Light (DOT certified and snow melting)
Item no. : SM-9060-RDE
Dimension(Inch) : L8.42”x W7.90”x T4.47”
Function: Snow melting function+High/Low beam+Turn signals+Position light
Working Voltage: 12-30V DC
Theoretical power: 102W
Certificated: CE, ECE, 3C, DOT, RoHS
The LED trailer light kits SM-9060-RDE offer increased durability, efficiency and brightness than traditional trailer lighting
LED technology is shock resistant and withstands road vibration and shaking,
They are also epoxy encapsulated to eliminate corrosion and moisture
Our clearance markers were made with the end user in mind so they are easy to install,
made from the latest technology to maximize the lighting lifespan, available in standard and submersible versions
Item no. SM-9060-RDE (With DOT certification)
Model: Heated glass lens LED combined headlight
Dimensions: W8.42” x D7.90” x H4.47” Inch/ 214*201*120.8mm
Multi-voltage: 12-36V DC
Rated Power: 106W
Number of LED Chips: 16Pcs
Luminous Flux(measured): 2645LM±10%
Color temperature: 5000-5500K
Ambient Temperature: -40°C to +65°C
Connection: Integrated DT Connector with open wires (Wire Length customized)
Approvals: ECE & EMC approved, (ECE-R10)
Packaging: Inner White Box, Outer carton pack
Minimum Order Qty: 1set/box, 6Pairs/carton
Weight: 2.3lbs Unit
LED combination snow melting headlight SM-9060-RDE
Function: Hight/Low beam+Turn signals+ Position light
(DOT certification and snow melting function)
Our license lights, combined traffic lights, work light and read lights are dedicated to ensure convenience and safety to our customers;
All our specialty lighting is within vehicle compliance and automotive regulations.
If you have a need, we have all types of your light!
* Applications:
Facilities lighting
Lighting of Engineering vehicle
Special vehicle lighting
Agricultural vehicle lighting
Mining vehicle lighting
Highway,Railway & Boats lighting
Municipal vehicles lighting
* Meet ECE, EMC & DOT compliance requirement
* Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board panel
* Four installation methods:
- Built-in install, screw fixture and take attention on mounting hole distance;
- Embedded, screw fixture and take attention on mounting hole distance;
- Bracket stand with screw mounting, depend on screw size.
- Strong magnetic adsorption
* Provided customized service:
- The lamp appearance designed
- The material of housing
- Function design on circuit board
- Chip color
- Connection method
- Installation method
- Color box of package
- The length of wire and others
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered
- Shipping: by sea or by air
- Delivery time: 15-25 days
- Order now: sammoon07@sammoon.tech
