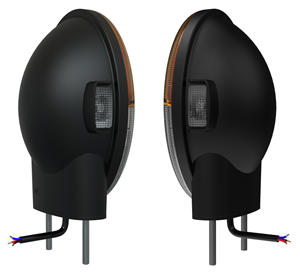

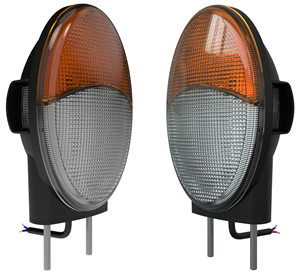

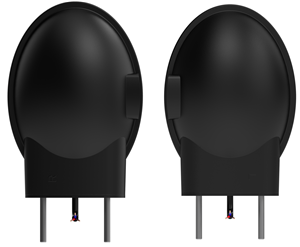

CE LED Color Indicator Stop and Turn Signals Lamp
Item no. : SM-6018-OSL-A/B
Dimension(Inch) : L6.04" x W4.17" x T2.71" Inch
Function: Signals marker , Position lamp
Working Voltage: 12V DC
Theoretical power: 9.2 W
Certificated: CE, ECE, 3C, RoHS, R6, R10
LED SIGANL LIGHT SM-6018-OSL-A/B
The Light Distribution Performance of front position lamp shall meet the requirements of GB 5920 (GB 5920-2008)
Photometric Performance of front position lamp, rear position lamp, clearance lamp and brake lamp of automobile and trailer lamp.
The Light Distribution Performance of front turn signal lamps shall meet the requirements of GB / T 17509
(Photometric Performance of turn signal lamps of automobiles and trailers)
Item no.SM-6018-OSL-A/B
Function:Front Turn signals (Amber) & Front Position light (White) & stair light (White)
Model: three functions combined led signal light, front light with amber and white color light.
* Applications:
Facilities lighting,Lighting of Engineering vehicle,Special vehicle lighting,Agricultural vehicle lighting
Mining vehicle lighting,Highway,Railway & Boats lighting,Municipal vehicles lighting
* Meet ECE & E-MARK & DOT compliance requirement
* Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board panel
* Four installation methods:
- Built-in install, screw fixture and take attention on mounting hole distance;
- Embedded, screw fixture and take attention on mounting hole distance;
- Bracket stand with screw mounting, depend on screw size.
- Strong magnetic adsorption
* Product customized details:
- The lamp appearance designed
- Housing material of the lamp
- Working power
- Chip color
- Connection method/wire length
- Installation method
- Color box of package
- Others (as logo print)
Services and Transport:
- Warranty: One year
- OEM Service Offered, Design Service Offered
- Shipping: by sea or air
- Production lead time: 25-35 days (customised order)
- Order now: sammoon07@sammoon.tech
