32W IP67 9G EMC CLASS 3 Work Light
Item no. : SM-KT11032-SFA
Dimension(Inch) : 257*77*55.5mm
Function: Work light
Working Voltage: 12-32V DC
Theoretical power: 32W
Certificated: ECE, DOT, RoHS, IP67
1) Applied as head lights for special and commercial vehicles, as work lights in farm and construction equipment
2) Adopted in tractor of LOVOL and KT
Function | Work light |

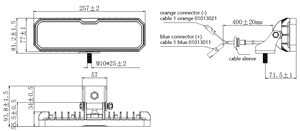

Dimension | 257* 77*55.5(93.8) mm (with bracket) |
Material | front cover: integrated PC lens rear housing: Aluminum-ADC12 flat black |
LED bead | 2W*16PCS |
Color temperature | 5700-6500K |
Luminous flux | 2500 lm |
Nominal power | 32W |
Working temperature | -40℃ ~ +85℃ |
Working voltage | 12～36V DC |
Corrosion resistance of surface | paint adhesion test grade 0 neutral salt spray 126H |
Waterproof and dustproof | IP67 |
Anti-vibration | 9G |
EMC standard | CISPR25 CLASS 3 |
Wiring method | direct wiring, 400mm connect to 01013011, 01013021 terminals |
Installation | eccentric bracket with M10 bolts |
Life span | 25000H |
