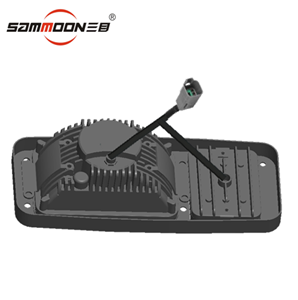

ECE Embedded Front Signal Combined Indicator LED Signal Light
Item no. : SM-5040-SDA
Dimension(Inch) : L6.58" x W4.22" x T3.5" Inch
Function: High / Low beam light and Signal light
Working Voltage: 12～36V DC
Theoretical power: 28W
Certificated: CE, ECE, 3C, DOT, RoHS
Four light pattern options: spot beam and flood beam, turn signal and reverse.
Applied in construction, forestry equipment and agriculture machinery.
In the SM-12054-SDA smart selection has four light pattern options: wide flood, spot beam, reverse and turn signal.
Applied in construction engineer machinery, forestry equipments and agriculture vehicles.
The Combination Product Family has a square form factor and pedestal mounting.
The light produces zero emissions (EMC CISPR 25 class 5) and its light output is up to 3500 lumens.
Item No.SM-5040-SDA

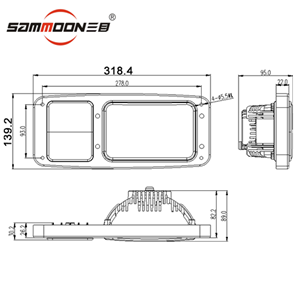

Dimension(MM): 167.2 x 107.2 x 89mm
Dimension(Inch): W6.58" x D4.22" x H3.5" Inch
Function: High /Low beam, turn signal and revese function combined lamp
Working voltage: 12～36V DC
Theoretical power: 28W
Working temperature: -40℃ ~ +65℃
Waterproof and Dustproof: IP67
* Applications:
Facilities lighting
Lighting of Engineering vehicle
Special vehicle lighting
Agricultural vehicle lighting
Mining vehicle lighting
Highway,Railway & Boats lighting
Municipal vehicles lighting
* Meet ECE, EMC & DOT compliance requirement
* Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board
* Three installation methods:
- Built-in install, screw fixture and take attention on the size of mounting holes;
- Embedded, screw fixture and take attention on mounting holes distance;
- Bracket stand, Stainless steel bracket with screw mounting, depend on screw size.
* Provided customized service:
- The lamp appearance designed
- The material of housing, back housing shape
- Function design on circuit board function
- Chip color (as the lighting colors -sun white, white, warm white, amber or red, blue and others).
- Connection method (Three connect methods )
- Installation method (Four connect methods)
- Color box of package
- The length of wire hardness
- others (Logo print)
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered
- Shipping: by sea fright or by air fright
- Delivery time: 30-35 days
