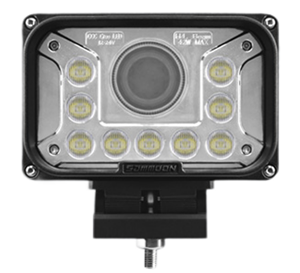

ECE Forkfilt LED Combination headLight

Item no. : SM-8042-SDA

Dimension(Inch) : L6.54" x T3.54" x W5.63" Inch

Function: As required

Working Voltage: 12~36V DC

Theoretical power: 42W

Certificated: ECE, DOT, RoHS, IP67

SM 8042PLUS, Heavy duty lights designed for agricultural and industrial use
Trapezoid - Designed to illuminate a "box" in front of the vehicle
Flood - Produces a wide pattern over a general area close to the vehicle
Spotlight - Produces a narrow, long-range beam that can illuminate areas at long distance

Download:

ECE Forkfilt LED Combination headLight

SM 8042PLUS, Heavy duty lights designed for agricultural and industrial use

Trapezoid - Designed to illuminate a "box" in front of the vehicle

Flood - Produces a wide pattern over a general area close to the vehicle

Spotlight - Produces a narrow, long-range beam that can illuminate areas at long distance

Item No.SM-8042-SDA

Dimension(mm) 166*90*143mm /

Dimension(Inch) W6.54“ x D3.54” x H5.63” Inch

Working voltage: 12~36V  DC

Theoretical power: 42W

Color temperature: 5700~6500K, White

Working temperature: -40℃ ~ +85℃

Waterproof and Dustproof: IP67

Corrosion resistance of surface: Neutral salt spray 72h


* Applications:

   Facilities lighting

   Lighting of Engineering vehicle

   Special vehicle lighting

   Agricultural vehicle lighting

   Mining vehicle lighting

   Highway,Railway & Boats lighting

   Municipal vehicles lighting


  * Meet ECE, EMC & DOT compliance requirement

  * Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board panel


  * Four installation methods:

    - Built-in install, screw fixture and take attention on mounting hole distance;

    - Embedded, screw fixture and take attention on mounting hole distance;

    - Bracket stand with screw mounting, depend on screw size.

    - Strong magnetic adsorption


* Provided customized service:

    - The lamp appearance designed

    - The material of housing

    - Function design on circuit board

    - Chip color

    - Connection method

    - Installation method

    - Color box of package

    - The length of wire and others



   Services and transport:

   - Warranty: product warranty for one year

   - OEM Service Offered, Design Service Offered

   - Shipping: by sea or by air

   - Delivery time: 15-25 days

   - Order now: sammoon07@sammoon.tech
