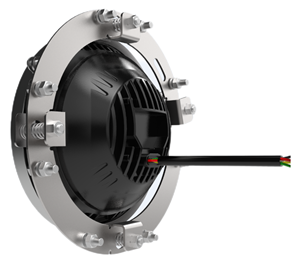

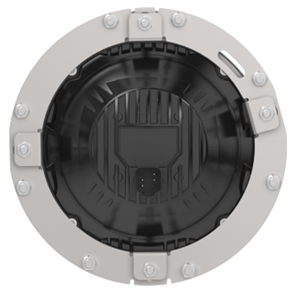

Glass Lens LED Combination Heated Lamp
Item no. : SM-7044-RDB
Dimension(Inch) : D6.91” x T3.28” Inch
Function: High beam+Low beam+Position light+Snow melting function
Working Voltage: 12-30V DC
Theoretical power: 45W
Certificated: CE, ECE, 3C, DOT, RoHS
In the SM-7044RDB heated selection there are four light pattern options: flood, wide flood, high beam and reverse.
Useful in construction, forestry, agriculture, and material handling, the Combination Product Family has a round form factor
and pedestal mounting. The light produces zero emissions (EMC CISPR 25 class 5) and its light output is up to 5000 lumens.
Item No.SM-7044-RDB
Function:Snow melting funciton+High/Low beam+Position light
Dimension: Φ175.5*83.2mm / R6.91" x D3.28" Inch
Working voltage: 12-30V DC
Theoretical power 45W
Function/ Theoretical power /Color temperature/Light color
High beam light: 26W LED-13W*2Pcs, 5500-6500K, White color
Low beam light: 15W LED-15W*1Pcs, 4000-5000K, White color
Position light: 4W LED-1W*4Pcs,3500-4500K, White color
* Applications:
Facilities lighting
Lighting of Engineering vehicle
Special vehicle lighting
Agricultural vehicle lighting
Mining vehicle lighting
Highway,Railway & Boats lighting
Municipal vehicles lighting
* Meet ECE, EMC & DOT compliance requirement
* Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board panel
* Four installation methods:
- Built-in install, screw fixture and take attention on mounting hole distance;
- Embedded, screw fixture and take attention on mounting hole distance;
- Bracket stand with screw mounting, depend on screw size.
- Strong magnetic adsorption
* Provided customized service:
- The lamp appearance designed
- The material of housing
- Function design on circuit board
- Chip color
- Connection method
- Installation method
- Color box of package
- The length of wire and others
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered
- Shipping: by sea or by air
- Delivery time: 15-25 days
- Order now: sammoon07@sammoon.tech
