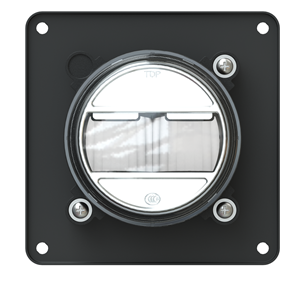

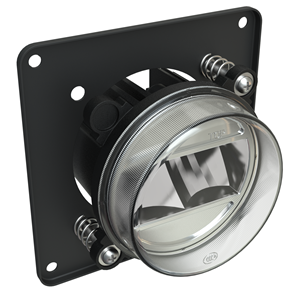

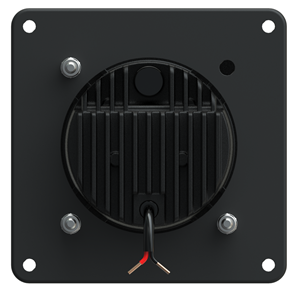

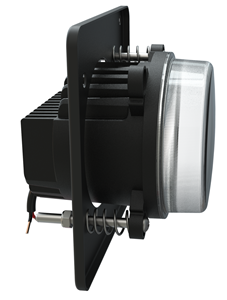

Front Combination high beam for construction agricultural equipment
Item no. : SM-TL4030-RDA
Dimension(Inch) : φ103.2*102mm
Function: high beam
Working Voltage: 12-36V DC
Theoretical power: 30W
Certificated: ECE, DOT, RoHS, IP67
5.000 lumen high beam
12G random vibration for construction application
exceptional heat dissipation with robust aluminium rear housing
heat-resistant polycarbonate cover reinforced with nano silica
1) External dimension
φ103.2*102mm with bracket
150*150*102mm with bracket
2) Material
aluminium rear housing and polycarbonate cover
3) Operating voltage
12-36V DC
4) Power
30W
5) Luminous flux
600±200lm
6) Color temperature
2300~3800K
7) Corrosion test
paint adhesion test grade 0, neutral salt spray 126h
8) Waterproof rating
IP67
9) Operating temperature
-40℃~+65℃
10) Lighting standard
ECE-R149
11) EMC
CISPR-25 CLASS 3
12) Vibration test
12G random vibration
13) Lifespan
25000 hours
14) Wiring
Deutsch connectors or direct wiring with open wires
15) Installation
Iron bracket with bolts M6
