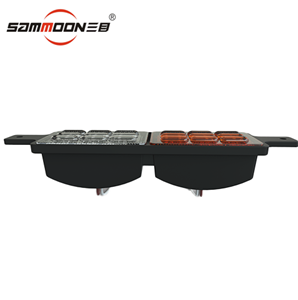

LED Rear Combination Lamps
Item no. : SM-WD-004

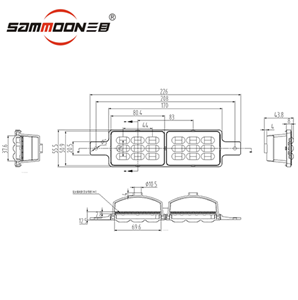

Dimension(Inch) : L8.90”x W2.18”x T1.72”Inch
Function: Turn signals and Reversing rear light
Working Voltage: 12V DC
Theoretical power: 10W
Certificated: CE, ECE, 3C, RoHS, R6, R10
LED REAR COMBINATION LIGHT TAIL COLOR LIGHT
This light is combined amber and white colors and combined turn signals, revesing and position functions.
Item no.SM-WD-004
FunctionTurn signals and Reversing light
* Applications:
Facilities lighting
Lighting of Engineering vehicle
Special vehicle lighting
Agricultural vehicle lighting
Mining vehicle lighting
Highway,Railway & Boats lighting
Municipal vehicles lighting
* Meet ECE, EMC & DOT compliance requirement
* Compact Aluminium alloy die-cast housing, polycarbonate lens with inside circuit board panel
* Four installation methods:
- Built-in install, screw fixture and take attention on mounting hole distance;
- Embedded, screw fixture and take attention on mounting hole distance;
- Bracket stand with screw mounting, depend on screw size.
- Strong magnetic adsorption
* Product customized details:
- The lamp appearance designed
- Housing material
- Working power,
- Chip color
- Connection method / wire length
- Installation method
- Color box of package
- Others
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered
- Shipping: by sea or by air
- Delivery time: 15-25 days
- Order now: sammoon07@sammoon.tech
